Technical details for production planners

Production systems
that work together.

Selected key components, interfaces and applications, organised by production workflow.

SYSTEMS IN DETAIL

Expand a section for
the technical details.

This overview focuses on production-relevant highlights rather than a complete inventory.

STUDIO CAMERAS & PROMPTERSComplete camera chains, ready to work.
Studio4x camera chain with URSA Broadcast G2, pedestal and teleprompter

For talk formats, corporate broadcasts, stage and hybrid productions, we configure broadcast-ready studio camera chains with operators, monitoring and return feeds.

KEY COMPONENTS2× URSA Broadcast G2Fujinon LA16×8BRM Broadcast ZoomSachtler Combi Ped / Video 2524″ Teleprompter with Talent MonitorHybrid Fibre Camera LinksStudio Viewfinder · Focus / Zoom Demand
WHAT THEY ENABLE4K UHD Camera OutputCCU, Shading and TallyPrompter OperationLong Fibre Signal PathsCamera Operator Included
PANASONIC PTZ & MOBILE CAMERASMore perspectives, remotely controlled or mobile.
Studio4x Panasonic PTZ controller for multi-camera productions

PTZ systems complement operated studio cameras. Mobile cameras and wireless video add freedom of movement at events and on-location productions.

KEY COMPONENTSPanasonic AW-UE1604× Panasonic AW-UE100Panasonic AW-RP1502× Canon XF705DJI SDR / Wireless VideoPTZ: 4K · 12G-SDI · IP
WHAT THEY ENABLERepeatable PTZ PositionsDiscreet Multi-camera ProductionMobile Wireless Camera AnglesCompact On-location SetupsPTZ Operator Included
BLACKMAGIC VISION CONTROL & RECORDINGFull studio control. Two M/E on the road.
Studio4x Blackmagic control room with a vision mixer, camera control and multiview

Cameras, presentations, graphics, playback, remote guests and recording come together in one controlled workflow, in the studio or in a mobile control room.

KEY COMPONENTSATEM Constellation 8K · 4 M/E · 40× 12G-SDIATEM 2 M/E Constellation HDATEM 2 M/E Advanced PanelATEM Camera Control PanelHyperDeck Studio 4K ProDeckLink · UltraStudio · Multiview
WHAT THEY ENABLELive Vision MixingCamera Shading and TallyKey / Fill and GraphicsProgramme Recording and Project-specific Individual SourcesMaterial for Post-production
VMIX, STREAMING & REMISeparate locations. One controlled live workflow.
Studio4x remote production workflow with vision control, networking and live signals

vMix-based systems bring together streaming, graphics, remote guests, recording and contribution. For REMI, we plan signal transport, primary and redundant uplinks, return video, intercom/IFB, monitoring and handover formats as one controlled workflow. Transport protocol, codec, latency and return paths are defined for each project and tested with the primary and backup connections.

KEY COMPONENTSvMix Production SystemsRemote Guests and ContributionGraphics, Playback and RecordingTeltonika Dual-5G / Multi-WAN UplinksVPN and Separate Production Networks10G / 2.5G Managed Networking
WHAT THEY ENABLERemote Production / REMIPrimary and Redundant Transmission PathsReturn Video and Intercom/IFBStreaming to Multiple PlatformsCentral Vision Control and Recording
AUDIO, GIGAACE & MADINetworked audio as a managed part of your system.
Studio4x audio mixing system for broadcast, MADI and events

Broadcast audio, multitrack recording and event sound are planned as one continuous signal path. Staffing for specialist audio crews is agreed separately for each project.

KEY COMPONENTSAllen & Heath AvantisAllen & Heath SQ-5GX4816 · gigaACERME MADIface XT IIAllen & Heath SuperMADISennheiser Wireless · Neumann Monitoring · RCF PA
WHAT THEY ENABLEBroadcast and Event AudioDigital Split and MADI WorkflowsMultitrack RecordingDigital Wireless SystemsPA for Productions with an Audience
LIGHTING, INTERCOM & CREW RADIOSInfrastructure that keeps live production running smoothly.

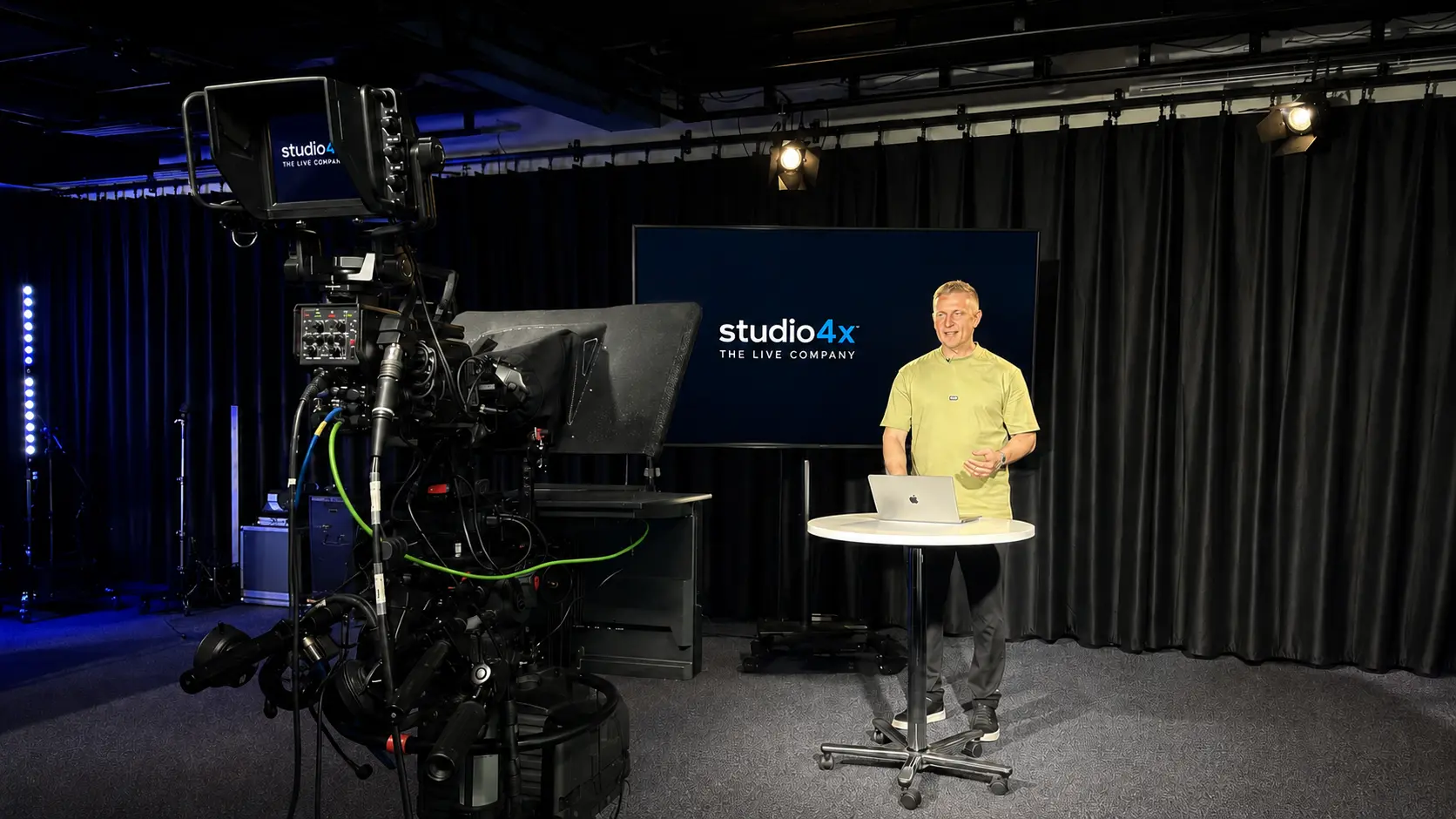

Studio4x production with a broadcast camera, teleprompter, studio lighting and technical support

Broadcast-ready lighting and clear communication complement the video workflow. Equipment is integrated for each project; specialist lighting crews are arranged as needed to suit the production.

KEY COMPONENTSAputure STORM · Nova · INFINIBARChamSys MagicQ · DMX · Art-NetHollyland Syscom 1000TMotorola Crew RadiosPoE++ InfrastructureMobile Power and Signal Distribution
WHAT THEY ENABLECamera-ready Set LooksControllable Lighting NetworksClear Crew CommunicationCoordinated Technical DepartmentsManaged System Operation

Looking for the right crew or a quick system overview first?

Back to Equipment & Crew ↗︎

TECHNICAL BRIEFING

What does your
system need to do?

An initial idea is enough. We will clarify the objective, format, production location and a realistic next step.
Send a signal plan & brief ↗︎EMAILkontakt@studio4x.dePHONE+49 531 48286870
